Pressure air inlets
Pressure air inlets
Modern PVC windows are really hermetic. Using air inlets modulate the airflow according to the local relative humidity rate.

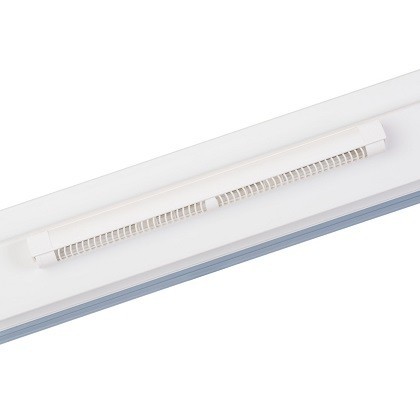

2MO air inlet is designed for installation in PVC and aluminum windows. Available in four colors: white (RAL 9003), brown (RAL 8017), light brown (RAL 8001) and anthracite (RAL 7016). The air inlet width of 290 mm allows installation also in narrow window sashes. We are also able to varnish the air inlet elements in any color according to the customer's taste.
The 2MO inlet consist of 2 parts: an outside - a canopy to protect against rain and insects and an inlet to control air-flow. Instead of a canopy can be mounted a gable vent for the windows with a roller blind.
a view from the inside - air inlet in closed position
a view from the inside - air inlet in open position
a view from the outside - canopy
a view from the outside - exhaust grille
An inlet in open position the amount of air supplied depends on the difference between the pressure inside and outside the room. The air - flow depends to the type of the inlet and is up to 20 m3/h. A greater increase results in the wings limiting the amount of air entering. However, after setting the cover in the closed position, the diffuser supplies the minimum amount of air. Air from the outside is flowing verticaly. The user has the option of closing the diaphragm and thus reducing the air flow to a minimum.
The pressure air inlets – the amount of air supplied depends on the difference between the pressure inside and outside the room. This happens until the difference in pressure reaches that level at which the intake vent operates most effectively. A greater increase results in the wings limiting the amount of air entering. Such a situation may be caused by a draft of air.
