Humidity sensitive air inlets

Modern PVC windows are really hermetic. Using intelligent air inlets modulate the airflow according to the local relative humidity rate.

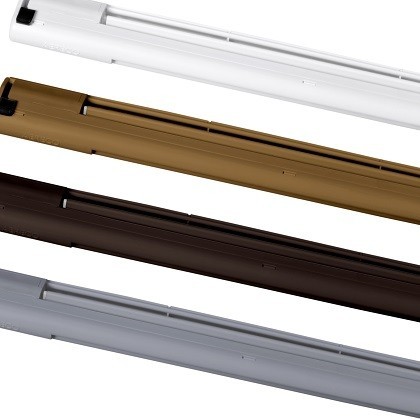

Humidity sensitive air inlets are two-stream devices, automatically controlled, in which the flow change depends on the relative humidity inside the rooms. They are intended for installation in PVC and aluminum windows. The inlets are available in five colors: white (RAL 9003), brown (RAL 8017), light brown (RAL 8001), gray (RAL 7045) and anthracite (RAL 7016). We are also able to varnish them in any color according to the customer's taste.

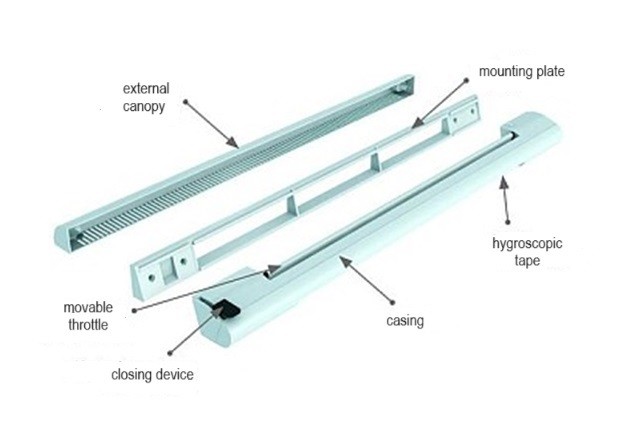

The inlets consist of 3 parts: an acoustic canopy to protect against rain and insects and two inner parts: a mounting plate and an inlet to control air-flow.

In our offer you will find a full range of Aereco EMM and EXR series products, thanks to which we can easily select the appropriate devices in terms of air flow, acoustic insulation and color.

EMM humidity sensitive air inlets

Depending on the position of the mounting plate to which the EMM inlet is attached, the air flow is directed vertically upwards or diagonally. The choice of the stream flow direction depends on the distance between the air outlet and the upper part of the window opening. The correct minimum distance between the diffuser and the wall is 3-5 cm. EMM diffusers are equipped with a manual flow block as standard. Closed diffusers enable the supply of a minimum air stream. It is recommended to use this option only in unfavorable climatic conditions

type / canopy

EMM.709 / AS

EMM.707 / AB

EMM.706 / AD

air flow* - acoustics**

7-33 - 9-47 m³/h - 32dB

6-30 - 9-43 m³/h - 32dB

6-30 - 9-43 m³/h - 38dB

EXR humidity sensitive air inlets

Thanks to the insert made of acoustic foam, the EXR inlet effectively reduces sounds by up to 42 dB (depending on equipment). This is the first AERECO air vent with the option of manual closing and full opening of the air vent, supporting the EXR hygrocontrol function.

type / canopy

EXR.304 / AS

EXR.305 / AS

EXR.306 / AB

EXR.307 / AB

EXR.308 / AD

EXR.309 / AD

EXR.408 / AQ

EXR.409 / AQ

air flow* - acoustics**

7-30 - 10-43 m³/h - 35dB

7-30 - 11-43 m³/h - 38dB

7-28 -   9-41 m³/h - 35dB

7-28 - 11-40 m³/h - 38dB

7-28 - 10-40 m³/h - 40dB

7-28 - 10-40 m³/h - 42dB

7-30 -   9-42 m³/h - 40dB

7-30 -  11-42 m³/h - 42dB
