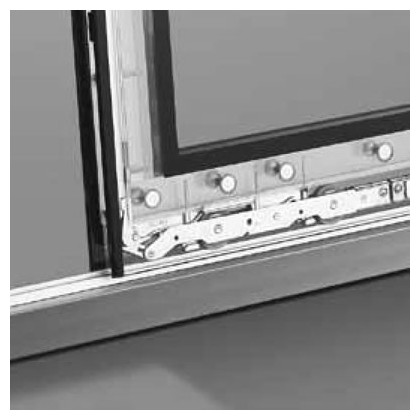

Lift-and-slide fitting GU

An integral element of the lift-slide terrace door is such a fitting which enables sliding, lifting and lowering sashes up to 400 kg in safe and confortable way.

Innovative technology

The basic advantages of the fittings we use for lift and slide doors are: perfect smoothness of movement and lightness of the moving leaves, as well as ease of use, even in the case of large and heavy leaves.

Trolleys

Running trolleys are available in two variants. In the basic variant, they enable the construction of sliding doors with a maximum leaf weight of 200kg. In the case of heavier structures, it is possible to use special reinforced trolleys with a load capacity of up to 400kg.

Espagnolette

The central element of the lift&slide hardware set is the espagnolette. It is the point of rotation and tilt of the lift and slide elements, enabling the opening and closing of the sliding sash on the fitting. All the espagnolettes we use are distinguished by precision and quality, the highest load capacity and durability. As a standard, all espagnolettes are factory-equipped with a hole for a cylinder insert. Thanks to this, it is also possible to retrofit the cylinder in combination with a handle with a hole for a cylinder cylinder without having to replace the espagnolette.

Durability

Both in the case of trolleys and espagnolettes, the functional durability tested at the maximum leaf weight is 25,000 cycles.

Aesthetics

The sets of fittings we use can be flexibly adapted to the needs of customers by using the appropriate colors of internal handles and external handles, which are available in several stylistic lines and a wide range of colors. The lift and slide doors we offer are also available in a version with a 2-sided handle and a lock insert, as well as with a half-cylinder.
