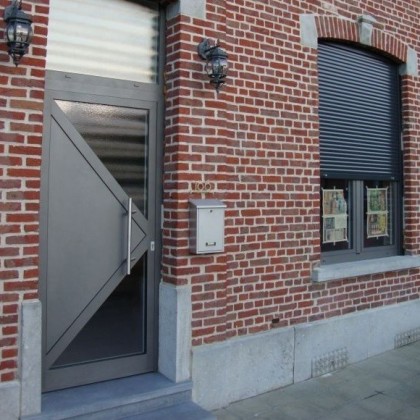

MB 86 (entrance doors)

MB 86 SI

MB 86 ST

material: aluminium
profile system: MB-86
frame: 3-chamber height 69,5mm, installation depth 77mm
threshold: pvc, usable height 20mm, depth 59mm (threshold mounted on an aluminum profile embedded in the floor)

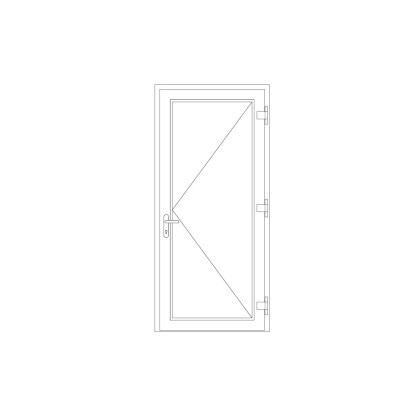

sash: 3-chamber, flush, height 100mm, depth 77mm, opening inwards or outwards
thermal separators: wide thermal separators with a new shape, allowing for the use of an additional partition in the profile insulation zone
glazing beads: straight, closed-shaped

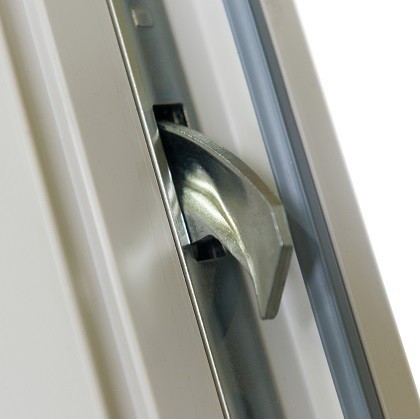

lock: multipoint hooks STV Winkhaus

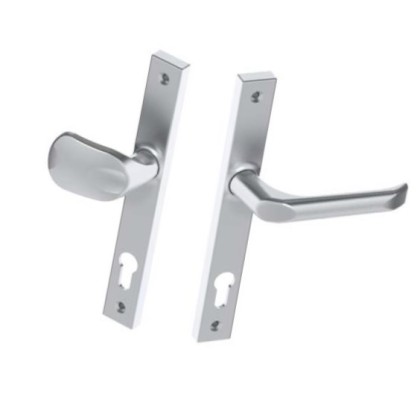

handle: 2-sided door handle on a long plate

material: aluminium
profile system: MB-86
frame: 3-chamber height 69,5mm, installation depth 77mm
threshold: pvc, usable height 20mm, depth 59mm (threshold mounted on an aluminum profile embedded in the floor)
sash: 3-chamber, flush, height 100mm, depth 77mm, opening inwards or outwards
thermal separators: wide thermal separators with a new shape, allowing for the use of an additional partition in the profile insulation zone
glazing beads: straight, closed-shaped
lock: multipoint hooks STV Winkhaus
handle: 2-sided door handle on a long plate
