DECALU 163 Slide (lift and slide patio doors)

material: aluminium
profile system: DECALU 163 Slide
frame: 3-chamber, sliding 2-rail, height 55mm, depth 163mm
threshold: aluminum 2-rail, height 20mm, depth 147mm (applies to sliding structures with a low threshold)
sash: 3-chamber, sliding, height 83,5mm, depth 59mm
thermal separators: width 40mm, made of PA according to DIN 16941, insulating inserts made of polyurethane
glazing beads: straight
seals: 2 gaskets made of TPE in black

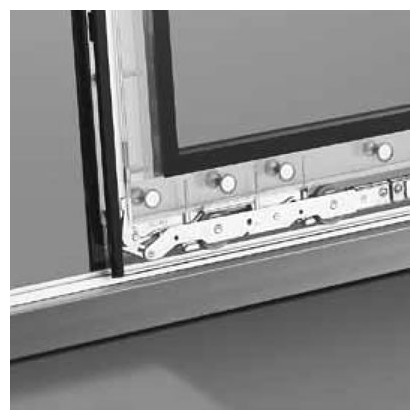

fittings: lift and slide GU

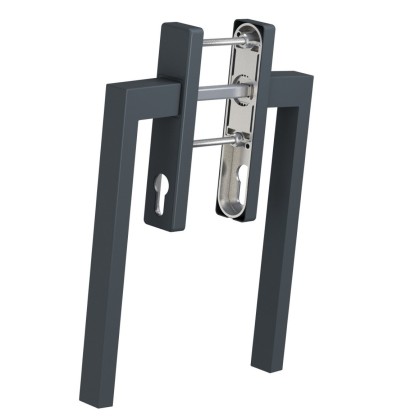

handle: as standard: HS handle from the inside, recessed handle from the outside; available option with a 2-sided handle

material: aluminium
profile system: DECALU 163 Slide
frame: 3-chamber, sliding 2-rail, height 55mm, depth 163mm
threshold: aluminum 2-rail, height 20mm, depth 147mm (applies to sliding structures with a low threshold)
sash: 3-chamber, sliding, height 83,5mm, depth 59mm
thermal separators: width 40mm, made of PA according to DIN 16941, insulating inserts made of polyurethane
glazing beads: straight
seals: 2 gaskets made of TPE in black
fittings: lift and slide GU
handle: as standard: HS handle from the inside, recessed handle from the outside; available option with a 2-sided handle
