VEKA Softline 82NL entrance doors

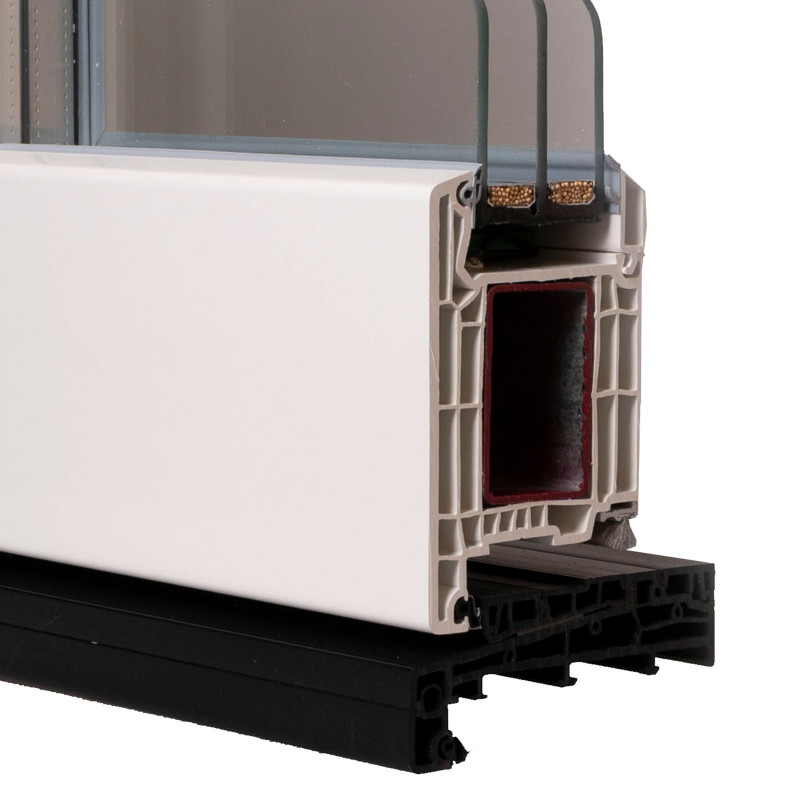

VEKA Softline 82NL, entrance door opening outwards with Alumaster bottom

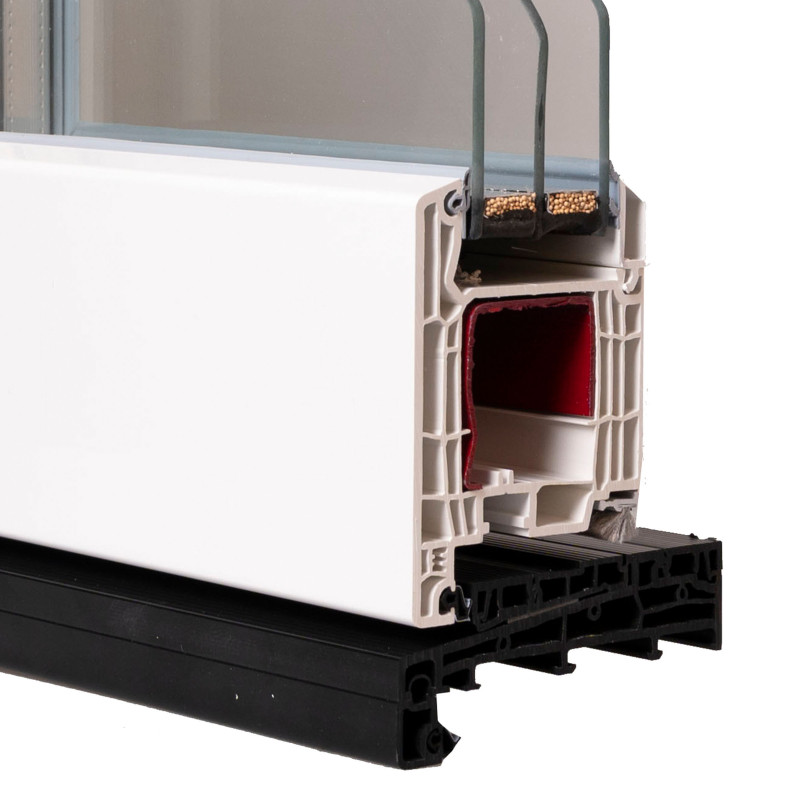

VEKA Softline 82NL, side entrance door opening outwards with Alumaster bottom

material: pvc
profile system: VEKA Softline 82NL, class A
frame: 7-chamber, 116 x 87mm (25°); Retro (5°) version also available as well as outward opening variant
threshold: aluminium 20mm, also available Alumaster 20mm sill and automatic door bottom
sash: 5 chambers, recessed, height 124mm (main entrance door), also available 6 chambers, recessed, height 114mm (side entrance door), sashes opening outwards are also available
glazing beads: straight
seals: 3 seals 2 external EPDM seals, mounted by hand, and a center seal
reinforcements: made of galvanized steel in all profiles, in frame of closed cross-section
lock: multipoint hooks STV Winkhaus
handle: 2-sided door handle on a long plate
thermal insulation: Uw=0,85 W/m2K (with insulated glass 4/18/4/18/4 Ug=0,5 W/m2K and warm frames) - for reference entrance door with dimensions: W=1,10 x H=1,20 m

material: pvc
profile system: VEKA Softline 82NL, class A
frame: 7-chamber, 116 x 87mm (25°); Retro (5°) version also available as well as outward opening variant
threshold: aluminium 20mm, also available Alumaster 20mm sill and automatic door bottom
sash: 5 chambers, recessed, height 124mm (main entrance door), also available 6 chambers, recessed, height 114mm (side entrance door), sashes opening outwards are also available
glazing beads: straight
seals: 3 seals 2 external EPDM seals, mounted by hand, and a center seal
reinforcements: made of galvanized steel in all profiles, in frame of closed cross-section
lock: multipoint hooks STV Winkhaus
handle: 2-sided door handle on a long plate
thermal insulation: Uw=0,85 W/m2K (with insulated glass 4/18/4/18/4 Ug=0,5 W/m2K and warm frames) - for reference entrance door with dimensions: W=1,10 x H=1,20 m
