VEKA Softline 82NL (entrance doors for the Dutch market)

Name: VEKA Softline 82NL (entrance doors for the Dutch market)
Brand: Warmińska Fabryka Okien
SKU: D-133

VEKA Softline 82MD, entrance door opening outwards, sash 124mm (Alumaster alu sill)

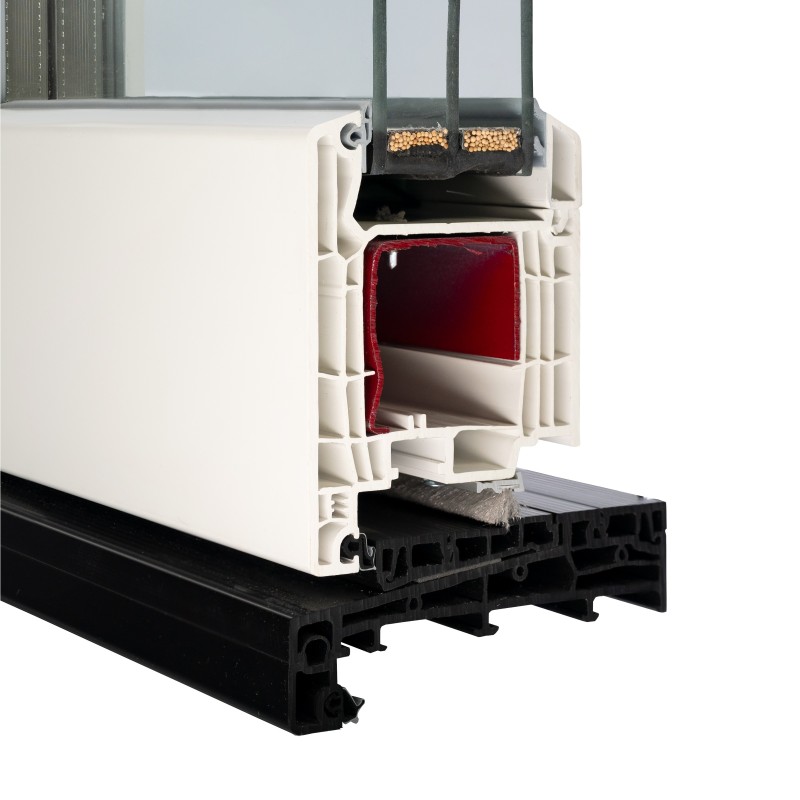

VEKA Softline 82MD, side entrance door opening outnwards, sash 114mm (Alumaster alu sill)

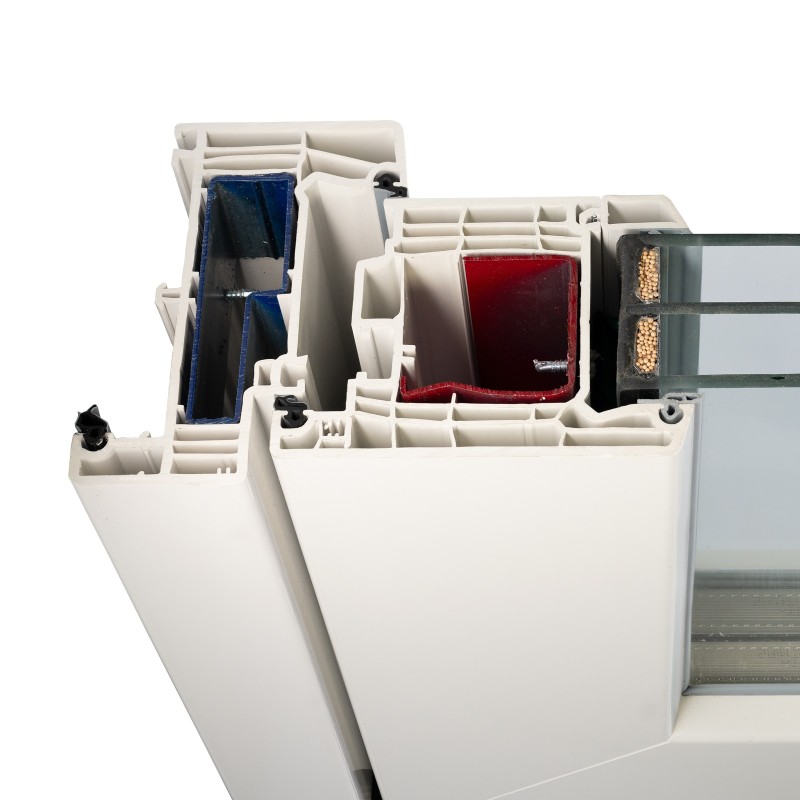

VEKA Softline 82MD, side entrance door opening outnwards, sash 114mm

material: pvc
profile system: VEKA Softline 82 MD, class A, recessed surface
frame: 7-chamber, height 83mm
threshold: aluminium 20mm, also available Alumaster 20mm sill and automatic door bottom
sash: 5 chambers, recessed, height 124mm (main entrance door), also available 6 chambers, recessed, height 114mm (side entrance door), sashes opening outwards are also available
glazing beads: straight
seals: 3 seals 2 external EPDM seals, mounted by hand, and a center seal
reinforcements: made of galvanized steel in all profiles, in frame of closed cross-section
lock: multipoint hooks STV Winkhaus
handle: 2-sided door handle on a long plate
thermal insulation: Uw=0,85 W/m2K (with insulated glass 4/18/4/18/4 Ug=0,5 W/m2K and warm frames) - for reference entrance door with dimensions: W=1,10 x H=1,20 m

material: pvc
profile system: VEKA Softline 82 MD, class A, recessed surface
frame: 7-chamber, height 83mm
threshold: aluminium 20mm, also available Alumaster 20mm sill and automatic door bottom
sash: 5 chambers, recessed, height 124mm (main entrance door), also available 6 chambers, recessed, height 114mm (side entrance door), sashes opening outwards are also available
glazing beads: straight
seals: 3 seals 2 external EPDM seals, mounted by hand, and a center seal
reinforcements: made of galvanized steel in all profiles, in frame of closed cross-section
lock: multipoint hooks STV Winkhaus
handle: 2-sided door handle on a long plate
thermal insulation: Uw=0,85 W/m2K (with insulated glass 4/18/4/18/4 Ug=0,5 W/m2K and warm frames) - for reference entrance door with dimensions: W=1,10 x H=1,20 m
