Vekamotion 82 max (lift and slide patio doors)

Characteristics

• material: pvc
• profile system: Vekamotion 82 MAX
• frame: 9-chamber 194x62mm
• threshold: made of PVC with an aluminum overlay, dimensions 194x62mm
• sash: 5-chamber sliding sash, height 86mm; 5-chamber fixed sash, height 75mm (increases the height of the frame/threshold by 30mm)
• glazing beads: straight
• seals: 2 seals made of EPDM material, mounted by hand
• reinforcements: made of galvanized steel in all profiles, in frame of closed cross-section
• fittings: lift and slide Winkhaus primePort HS / GU
• handle: as standard: HS handle from the inside, recessed handle from the outside; available option with a 2-sided handle
• thermal insulation: Uw=0.77 W/m2K (with insulated glass 4/18/4/18/4 Ug=0.5 W/m2K with warm frames) - for reference lift-and-slide patio door (scheme A) with dimensions: W=3,50 x H=2.20m

Window Fittings

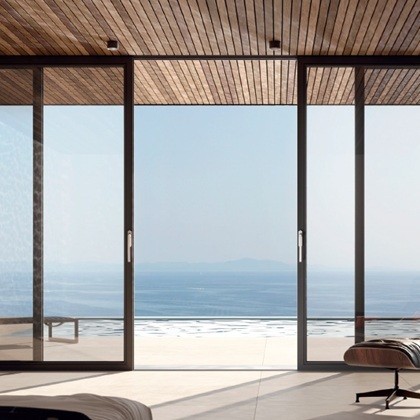

Winkhaus primePort HS (lift-and-slide fitting)

Lift-and-slide fitting GU

Accessories

Lift and Slide Door handles

Glasses

Warm edge

Muntin bars

Pvc and alu panels

Cylinders

Humidity sensitive air inlets

Pressure air inlets

Window ventilators Renson

Gaskets

Window drainage caps

Mosquito nets

Colouring

Veka Spectral

Varnishing

Sample construction types

Lift and sliding doors HST Plan A

Lift and sliding doors HST Plan D

Lift and sliding doors HST Plan K
