Offer
Characteristics
- material: pvc

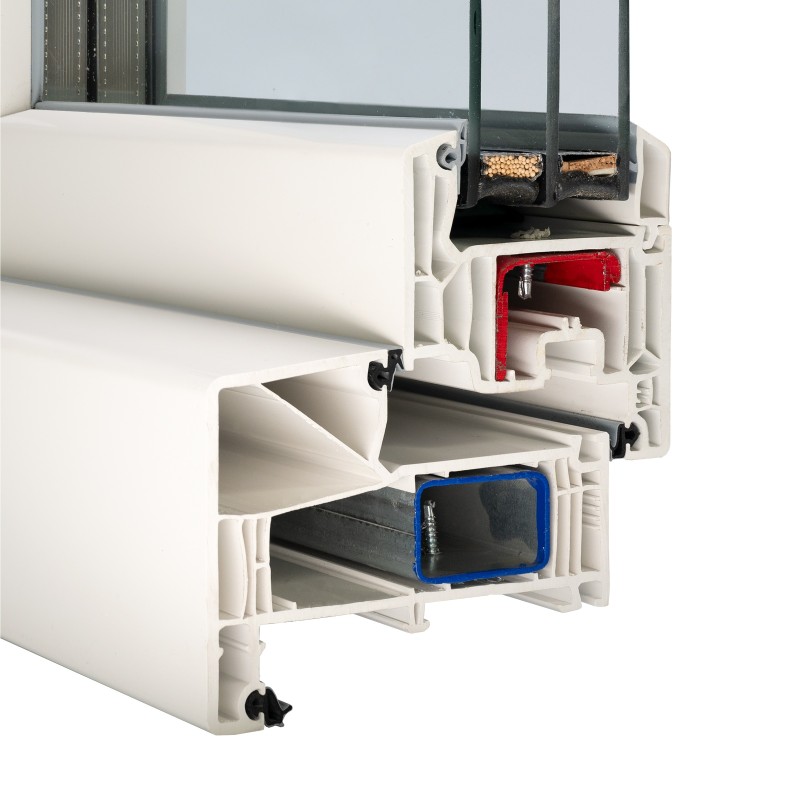

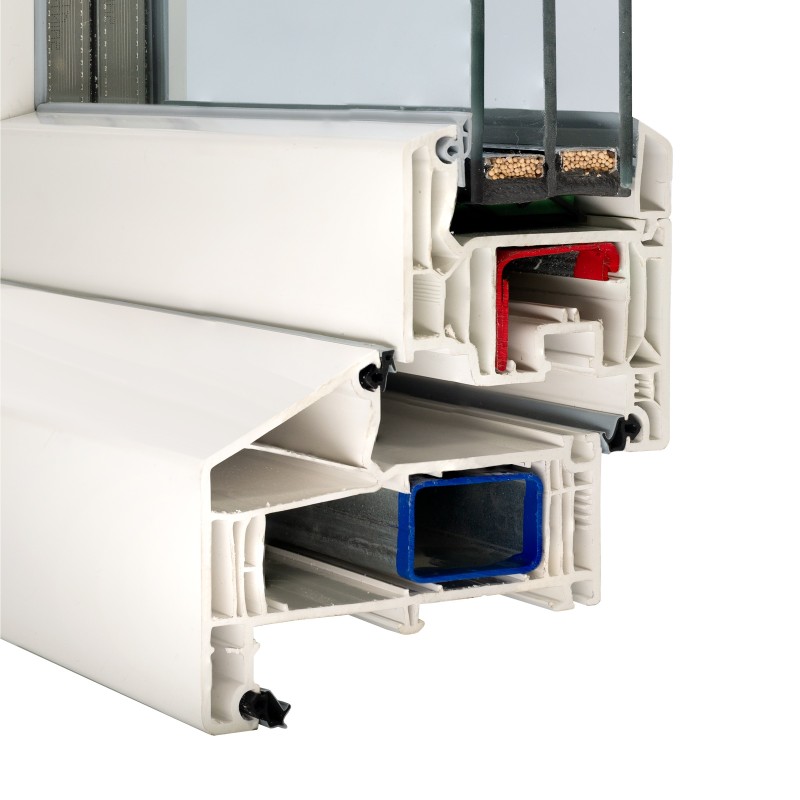

- profile system: VEKA Softline 82NL, class A
- frame: 7-chamber, 116 x 87mm (25°); Retro (5°) version also available
- threshold: aluminium 20mm, also available Alumaster 20mm sill and automatic door bottom
- sash: 6 chambers, recessed, height 84mm, optionally also a 6-chamber sash, height 114mm (applies to balcony doors with a 2-sided handle)
- glazing beads: straight
- seals: 3 seals 2 external EPDM seals, mounted by hand, and a center seal
- reinforcements: made of galvanized steel in all profiles, in frame of closed cross-section
- fittings: Winkhaus ActivPilot Concept as standard, optional Winkhaus Activpilot Topstar (with hidden hinges), opcjonal Winkhaus duoport SK (the slide-tilt fitting)
- handle: intenal handle, optionally double handle (in the case of balcony doors with a 2-sided handle) made of aluminum - Victory
- thermal insulation: Uw=0,76 W/m2K (with insulated glass 4/18/4/18/4 Ug=0,5 W/m2K with warm frames) - for the reference window W=1,23 x H=1,48m
