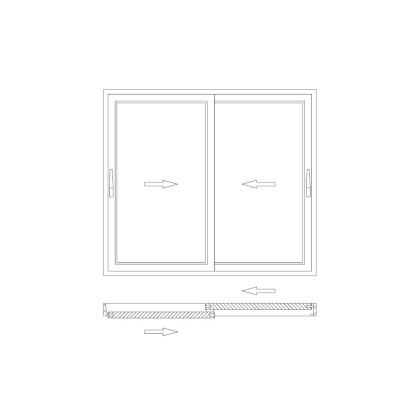

VEKA Ekosol 70 (sliding windows)

Name: VEKA Ekosol 70 (sliding windows)
Brand: Warmińska Fabryka Okien
SKU: D-61

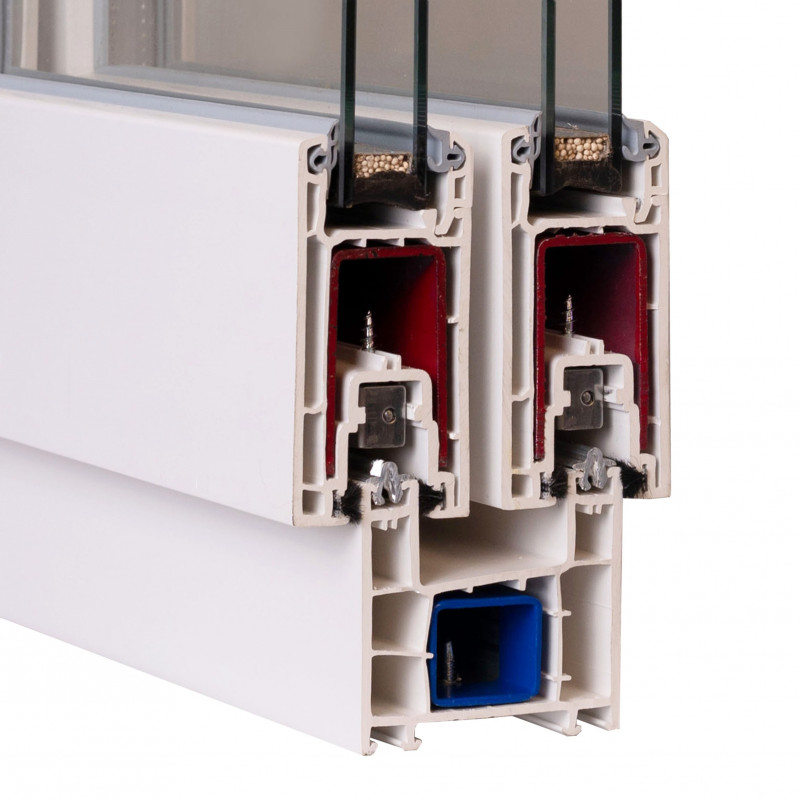

VEKA Ekosol 70, sliding frame 64x70mm, sliding balcony door sash 90x45mm

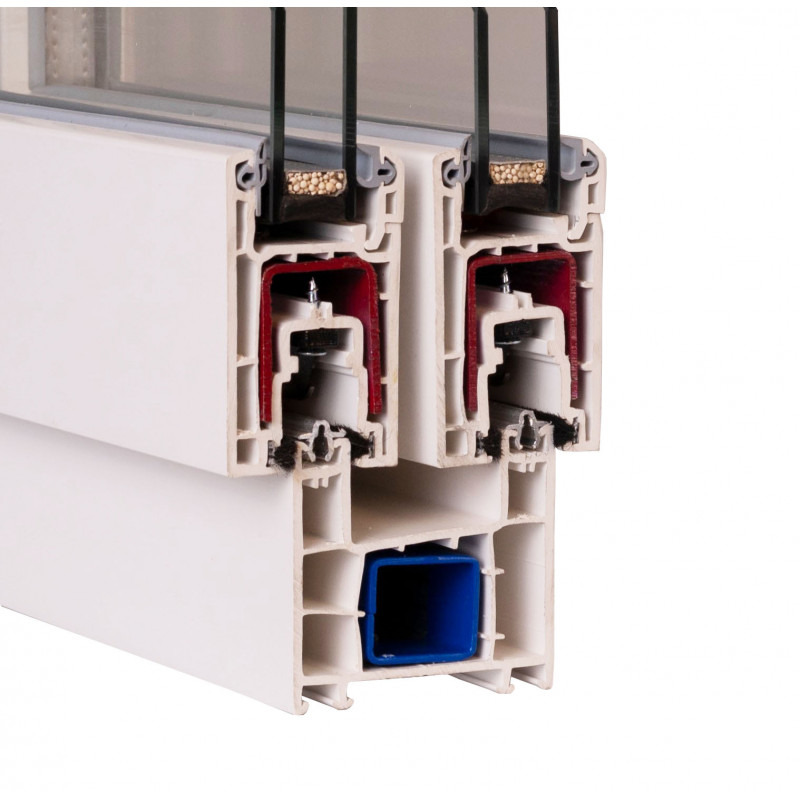

VEKA Ekosol 70, sliding frame 64x70mm, sliding window sash 75x45mm

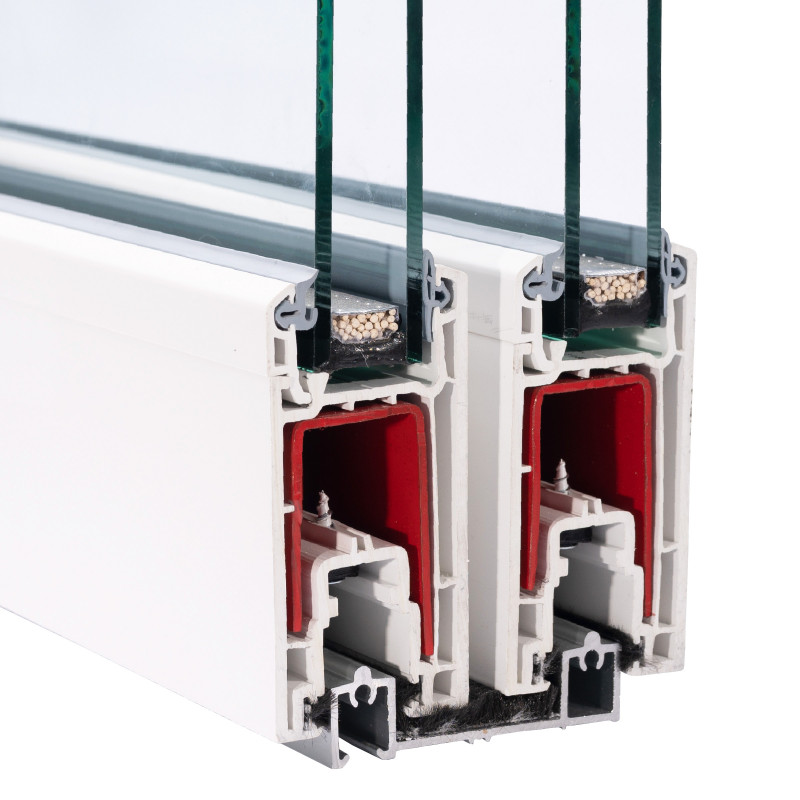

VEKA Ekosol 70, alu sill 20x70mm, sliding balcony door sash 90x45mm

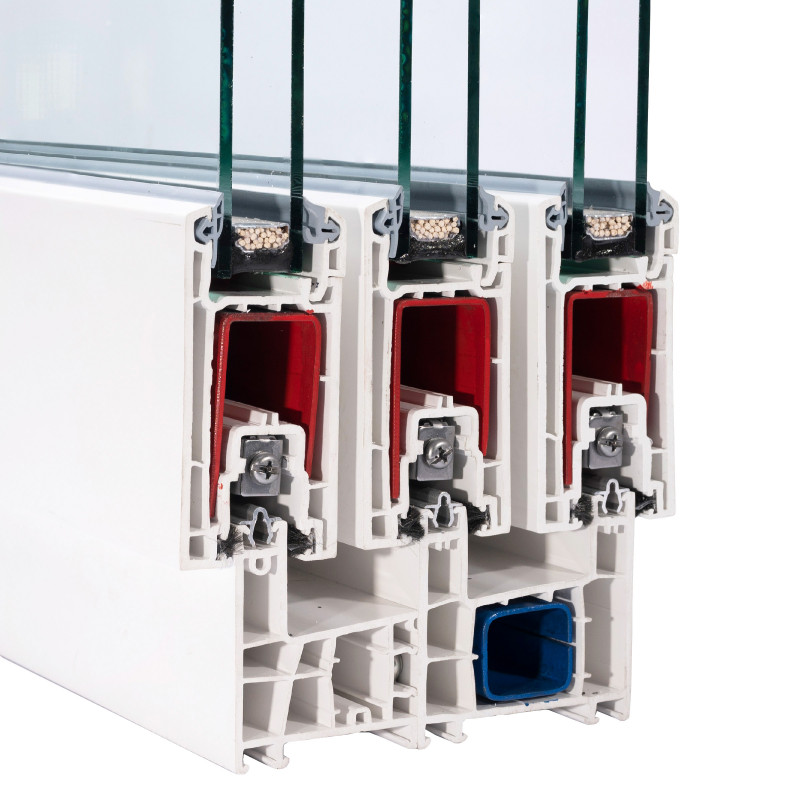

VEKA Ekosol 70, sliding 3-rail frame 64x125mm, sliding balcony door sash 90x45mm

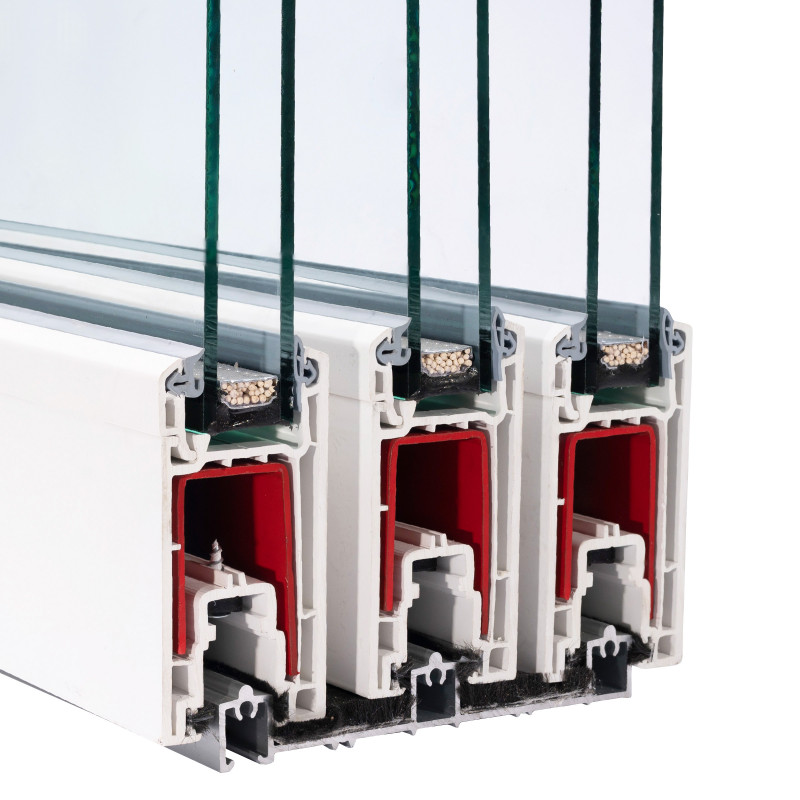

VEKA Ekosol 70, 3-rail alu sill 20x125mm, sliding balcony door sash 90x45mm

material: pvc
profile system: VEKA Ekosol 70
frame: 3-chamber, in a 2-rail system: sliding, height 64mm x 70mm; in a 3-rail system: sliding, height 64mm x 125mm
threshold: aluminum, height 20mm, 2- or 3-rail (applies to sliding structures with a low sill)
sash: 3-chamber sliding window sash: height 75 x 45mm / sliding balcony door sash: height 90,5 x 45mm
glazing beads: straight
seals: 2 brush seals
reinforcements: made of galvanized steel in all profiles, in frame of closed cross-section

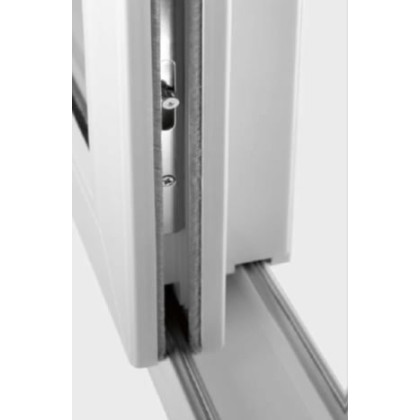

fittings: Winkhaus duoPort S sliding fitting
handle: standard: internal, aluminum - Victory; optional: recessed handle; optional 2-sided Victory (for balcony doors with 2-sided handle)
thermal insulation: Uw=1,8 W/m2K (with insulated glass 4/16/4 Ug=1,1 W/m2K and a warm frame) - for a reference sliding window with dimensions: W=1.23 x H=1.48 m
