Vekamove 76 (retract-slide patio doors)

Vekamove 76

material: pvc
profile system: Vekamove 76
frame: 9-chamber 150x71mm
sash: 5-chamber sliding sash, height 88mm
glazing beads: straight
seals: 2 seals made of EPDM material, mounted by hand
reinforcements: made of galvanized steel in all profiles, in frame of closed cross-section

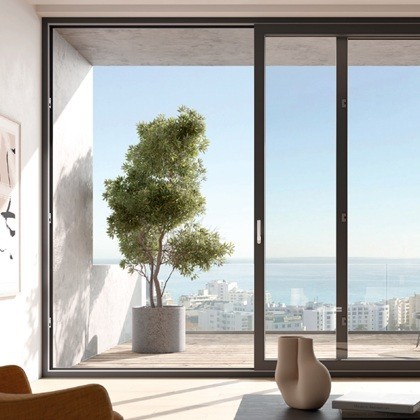

fittings: Siegenia Portal Eco Slide Co / Winkhaus primePort AS sliding fitting

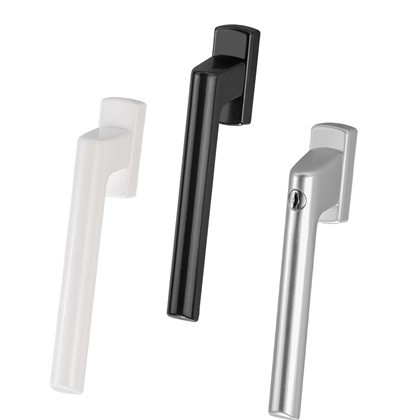

handle: as standard: sliding handle from the inside, recessed handle from the outside; available option with a 2-sided handle

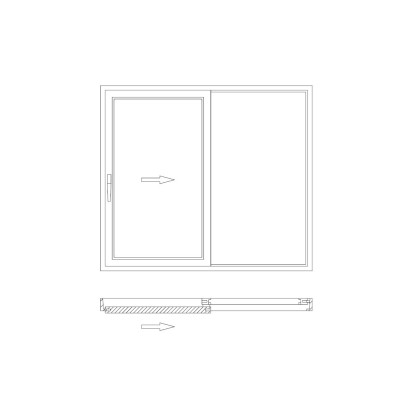

thermal insulation: Uw=0.72 W/m2K (with insulated glass 4/18/4/18/4 Ug=0.5 W/m2K with warm frames) - for reference slide patio door (scheme A) with dimensions: W=3,50 x H=2.20m
