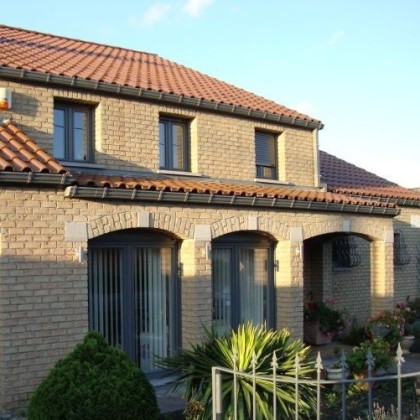

top mounted roller shutter CB

Name: top mounted roller shutter CB
Brand: Warmińska Fabryka Okien
SKU: D-180

CB box 205 x 255mm, insulation - neopor

CB box 205 x 255mm, insulation - stryrofoam

CB box 205 x 255mm in the variant for lift and slide door (access cover from rear-inside), insulation - stryrofoam

CB box 205 x 255mm in the variant for box covering on both sides, insulation - neopor

roller shutter box: made of pvc, top mounted
access cover: as standard: from the bottom (inside); optional: from the front (inside)
available dimensions of the box: H-165mm x D-255mm; H-205mm x D-255mm; H-245mm x D-255mm (H-height; D-depth)
heat insulation for the box: as standard: styrofoam; as option: neopor
reinforcement of the box: in the front wall for the boxes over 1,5m long; in the bottom profile for the boxes over 2,0m long
box covering possibility: without box covering or box covering from the outside, from the inside and on both sides; when covered equiped with plaster rails; as option: with alu cover of the front wall (in any RAL colour palette)
insect screen: available variant with a roll-up mosquito net; maximum dimensions of roller shutter with mosquito net: W=1600mm, H=2500mm

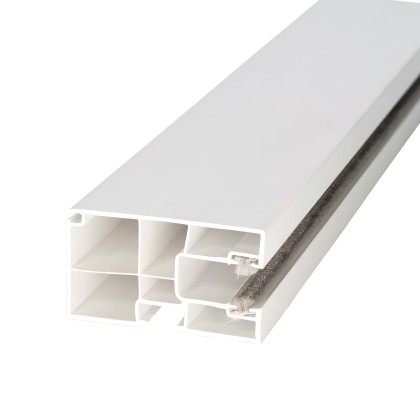

curtain guides: standard: 1- or 2-sided guides 60 x 35mm PVC equipped with brushes (mini); optional: 1-sided 64 x 59mm PVC equipped with co-extruded gray seals (mini, in case of constructions with a 2-sided handles); optional: 2-sided 60 x 35mm alu equipped with brushes (maxi); optional 2-sided 60 x 52mm pvc integrated guides mini for curtain and mosquito nets

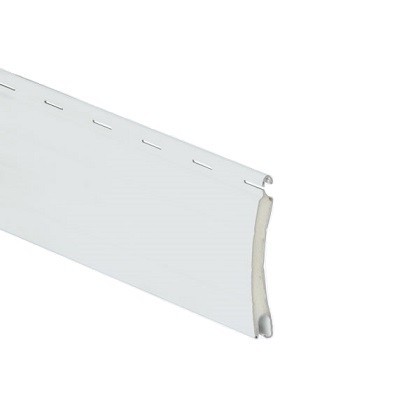

curtain slats: 41/41.5mm made of aluminium foamed inside, double-grooved, perforated or without perforation; optional: 55mm made of aluminium foamed inside, double-grooved, perforated or without perforation

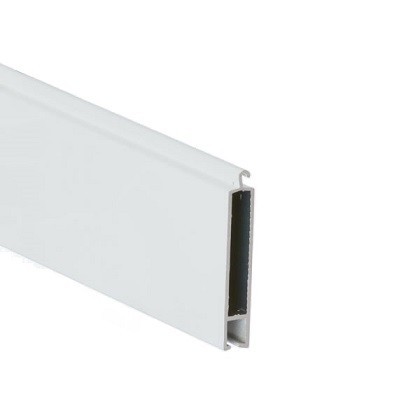

bottom slat: aluminum 55.9x7.4mm; optional: aluminum 62x14mm (when using a 55mm curtain slat)
